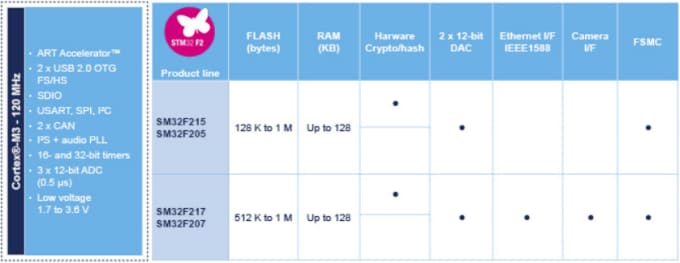

STMicroelectronics STM32 F2 Microcontrollers

STMicroelectronics STM32 F2 Microcontrollers uses ST's advanced 90nm NVM process technology with the innovative adaptive real-time memory accelerator (ART Accelerator™) and multi-layer bus matrix. These Arm® Cortex™-M3 based microcontrollers offer an unprecedented trade-off in price and performance. The series is characterized by a high degree of integration combining up to 1Mbyte of Flash memory and up to 128Kbytes of SRAM with Ethernet MAC, USB 2.0 HS OTG, camera interface, hardware encryption support, and external memory interface. ST's acceleration technology enables these MCUs to achieve up to 150 DMIPS/398 CoreMark at 120MHz FCPU, which is equivalent to zero wait state execution, while keeping the dynamic current consumption at the outstandingly low level of 175µA/MHz.

Features

Core
- Arm 32-bit Cortex-M3 CPU (120MHz max) with Adaptive real-time accelerator (ART Accelerator™ allowing 0-wait state execution performance from Flash memory, MPU, 150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
Memories
- Up to 1Mbyte of Flash memory
- 512bytes of OTP memory
- Up to 128 + 4Kbytes of SRAM
- Flexible static memory controller that supports Compact Flash, SRAM, PSRAM, NOR and NAND memories
- LCD parallel interface, 8080/6800 modes
Clock, reset, and supply management
- From 1.8 to 3.6V application supply+I/Os
- POR, PDR, PVD and BOR
- 4MHz to 26MHz crystal oscillator
- Internal 16MHz factory-trimmed RC
- 32kHz oscillator for RTC with calibration
- Internal 32kHz RC with calibration
Low-power modes
- Sleep, Stop and Standby modes
- V_BAT supply for RTC, 20 × 32 bit backup registers, and optional 4KB backup SRAM
Up to 17 timers
- Up to 12 16-bit and two 32-bit timers, up to 120MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

Up to 140 I/O ports with interrupt capability
- Up to 136 fast I/Os up to 60MHz
- Up to 138 5V-tolerant I/Os
Up to 15 communication interfaces
- Up to 3 × I²C interfaces (SMBus/PMBus)
- Up to 4 USARTs and 2 UARTs (7.5Mbit/s, ISO 7816 interface, LIN, IrDA, modem ctrl)
- Up to 3 SPIs (30Mbit/s), 2 with muxed I²S to achieve audio class accuracy via audio PLL or external PLL
- 2 × CAN interfaces (2.0B Active)
- SDIO interface
Advanced connectivity
- USB 2.0 full-speed device/host/OTG controller with on-chip PHY
- USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI
- 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII
Cryptographic acceleration
- Hardware acceleration for AES 128, 192, 256, Triple DES, HASH (MD5, SHA-1)
- Analog true random number generator
