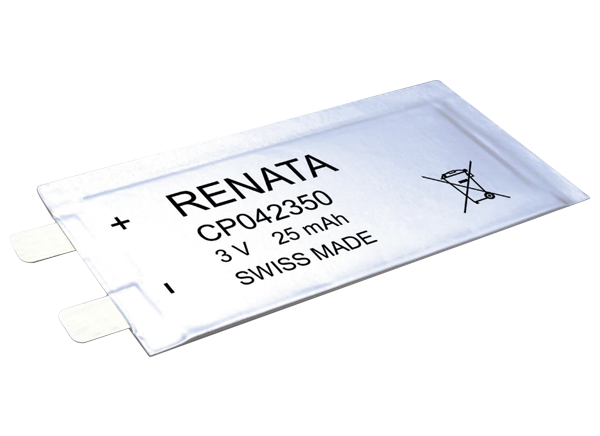

Renata CP042350 3V Thin-Film Primary Cell

Renata CP042350 3V Thin-Film Primary Cell features an extremely low profile, high bendability at >1000 cycles / Ø 50mm and low self-discharge at 1% per year. The cell is mercury-free with a shelf life up to 10 years at 23ºC with customizations possible.

Features

  • Extremely low profile
  • High bendability (>1000 cycles / Ø 50mm)
  • Low self-discharge at 1% per year
  • Shelf life up to 10 years at 23°C
  • Mercury-free
  • Customization possible

Specifications

  • Li/MnO2 chemical system
  • 3V nominal voltage
  • 25.0mAh nominal capacity
  • 22.5mAh minimal capacity C/40, cut off 2.0V at 25°C
  • <30Ω Internal resistance (at 50% SOC and 25°C)
    • DC pulse of 12.5mA for 1s
  • 0.86g average weight
  • C/40 - 625µA max. continuous discharge current
  • 0.5C - 12.5mA max. non-continuous discharge current
  • -40°C to 60°C operating temperature range
