Pomona Electronics 73098 4mm Mounting Safety Jacks
Pomona Electronics 73098 4mm Mounting Safety Jacks are insulated safety jacks for sheathed banana plugs that are ideal for mounting in pre-drilled panels. These safety jacks are raised for easy access and include a panel mount banana jack and two hex nuts. Pomona Electronics 73098 safety jacks offer a CAT II 1000V voltage rating and 32A current rating. These safety jacks are available in black, red, and blue colors.
Features
- Insulated 4mm safety jack for sheathed banana plugs
- Ideal for mounting in pre-drilled panels
- Safety jack is raised for easy access
- Machined brass
- Includes panel mount banana jack and two hex nuts
- Compatible with popular Pomona test lead models 5907A, 5908A, and 5909A test lead sets
- CAT II 1000V voltage rating
- 32A current rating
- Black, red, and blue color options

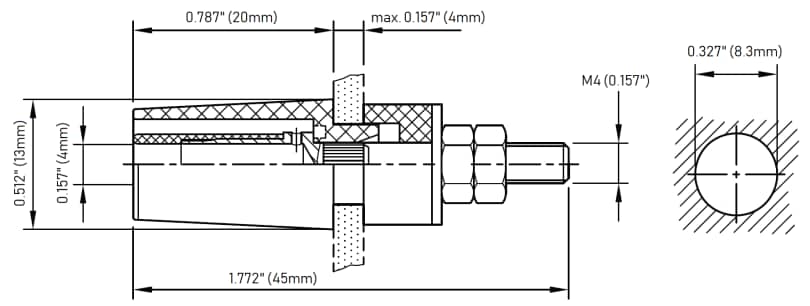

Dimensions
