MACOM MABA Transformer Designers' Kit
MACOM Technology Solutions MABA Transformer Designers' Kit features 10 each of 12 different parts, for a total of 120 pieces. MABA Transformer Designers' Kit also includes a CD-ROM containing datasheets, S-parameters, and application notes. These kits are ideally suited for broadband CATV applications.
Kit Contents
- 12 different part numbers
- 10 of each part, 120 pieces total
- CD-ROM containing datasheets, S-parameters and application notes
Specifications
- 4.5MHz to 3000MHz frequency range
- FR4, ceramic, or plastic SMT packaging
- 6dB to 42dB typ. return loss
- 0.1dB to 2.5dB insertion loss

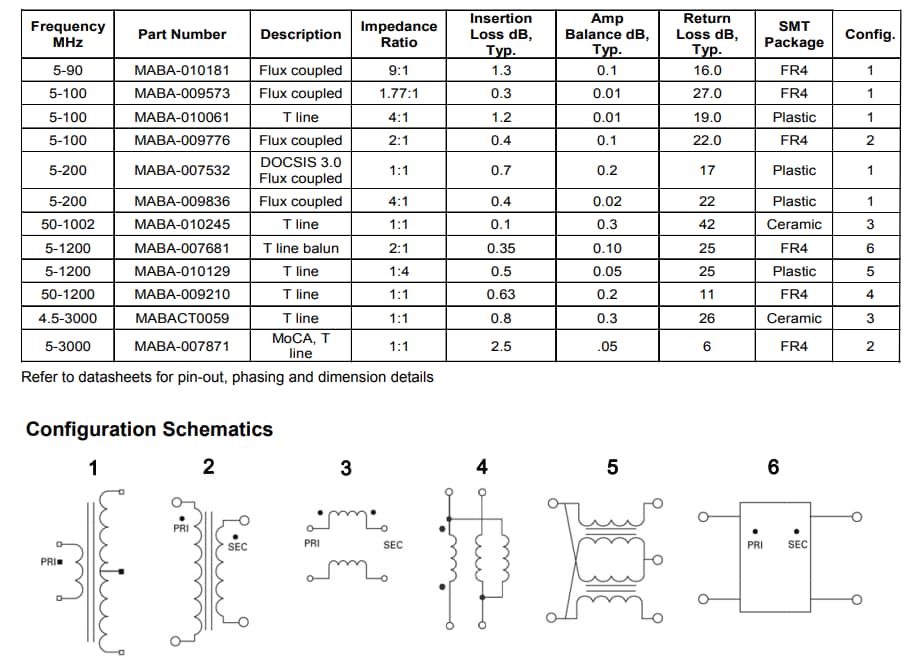

Specifications Grid
