Littelfuse SC3402-02ETG ESD Protection Diode
Littelfuse SC3402-02ETG ESD Protection Diode is an ultra-low capacitance, unidirectional ESD protection diode array designed to safeguard high-speed data interfaces. The typical capacitance of 0.4pF ensures excellent signal integrity for interfaces such as HDMI, DisplayPort, USB 3.0, and USB 3.1 Gen 1. The SC3402-02ETG SPA® diode can withstand ±15kV contact and ±20kV air ESD strikes per IEC 61000‑4‑2 without degrading performance. It also safely dissipates 7A of 8/20µs surge current, meeting IEC 61000‑4‑5 2nd edition surge requirements. The SC3402-02ETG TVS diode array is housed in a tiny SOD883 package, which helps save PCB space in compact electronics. This ESD protection diode is halogen‑free, lead‑free, RoHS-compliant, and supports operating temperatures from -40°C to 125°C.
Features
- ESD, IEC 61000-4-2, ±15kV contact, ±20kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Maximum surge tolerance, IEC 61000- 4-5 2nd edition, 7A (8/20μs)
- 100nA (maximum) low leakage current at 5V
- 0.4pF ultra low capacitance (typical @ VR = 0V)
- -40°C to 125°C operating temperature range
- 5V (maximum) reverse standoff voltage VRWM
- 7A (IPP) peak current (tp = 8/20μs)
- Tiny SOD883 package saves board space
- Halogen-free, lead-free, and RoHS-compliant
- Moisture Sensitivity Level (MSL-1)
Applications
- USB 2.0/3.0
- USB 3.1 Gen 1
- HDMI
- DisplayPort interfaces
Functional Block Diagram
Electrical Characteristics

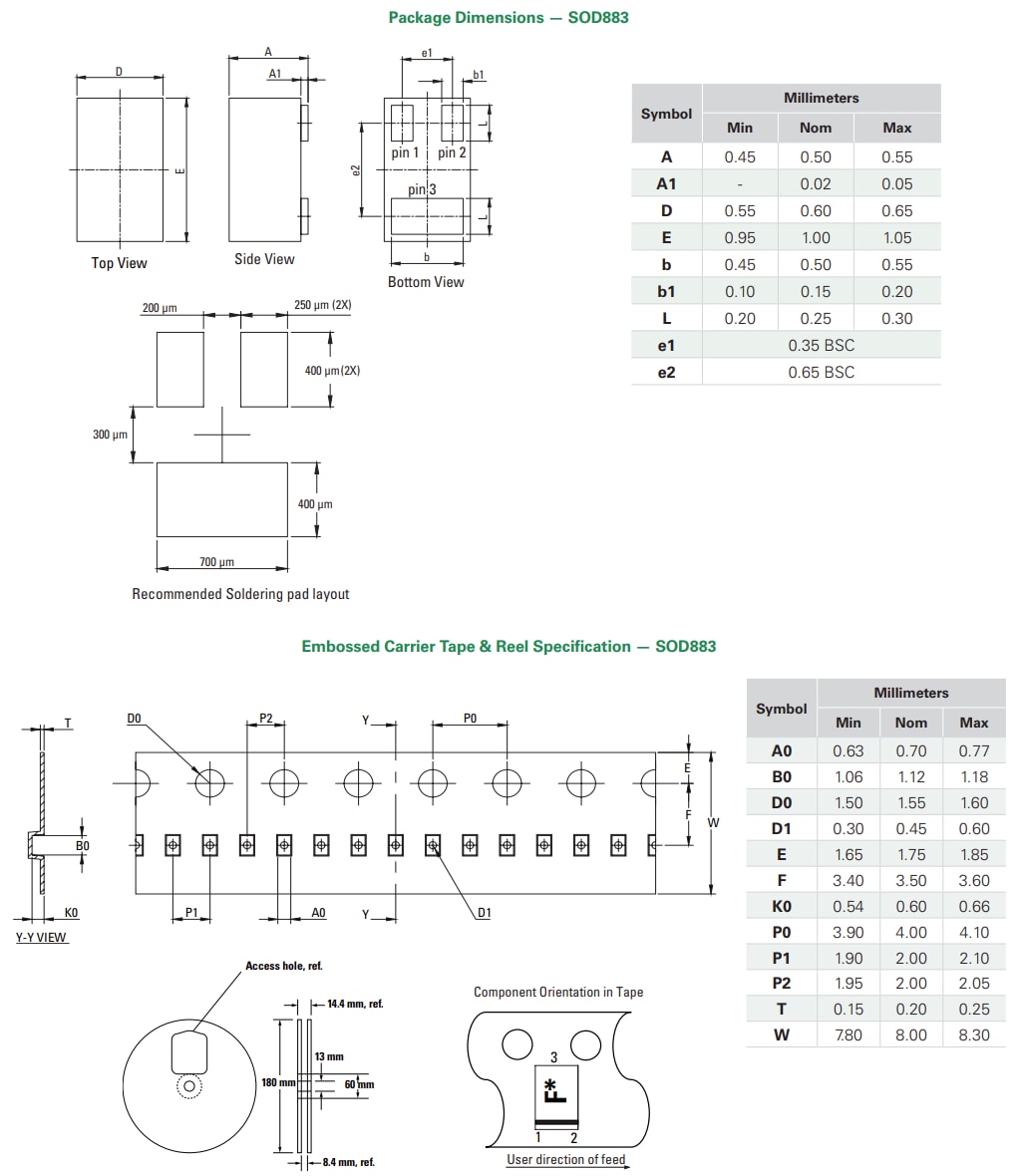

Dimensions Drawing
