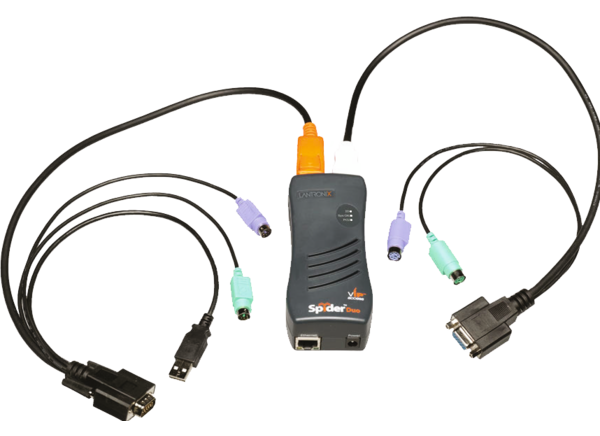

Lantronix SpiderDuo KVM Solutions

Lantronix SpiderDuo Keyboard, Video, and Mouse (KVM) Solutions provide integrated KVM-over-IP solutions for remote and local access to IT equipment. These KVM solutions come in a palm-sized, “zero-U” design ideal for space-constrained applications. The SpiderDuo solutions remotely manage PCs and servers to the BIOS-level while allowing transparent local access. These SpiderDuo solutions transfer files, install patches, and perform upgrades remotely with virtual media. The SpiderDuo KVM solutions operate in a 0°C to +45°C temperature range and feature a 4W to 8W heat dissipation range. These SpiderDuo solutions are easy to configure and install with color-coded connectors and remotely manage power with the optional power control unit. Typical applications include retail kiosks, banking ATMs, point-of-sale (POS), and data centers and development labs.

Features

  • Reduce costs and decrease downtime by remotely managing PCs and servers down to the BIOS level, while allowing transparent local access
  • Transfer files, install patches, and perform upgrades remotely with virtual media
  • Remotely manage power with optional power control unit
  • Easy configuration and installation with color-coded connectors, local and remote management are up and running in minutes

Applications

  • Data centers and development labs
  • Retail kiosks
  • Banking ATMs
  • POS

Specifications

  • Includes local KVM and computer input USB cable
  • Local access and up to 8 simultaneous remote users
  • Security:
    • Hardware-based encryption of keyboard, mouse, and video data
    • IP source address filtering
    • LDAP, RADIUS, and active directory remote authentication
    • User/Group management with permissions control
    • Configurable port numbers (HTTP, HTTPS, Telnet, and SSH)
    • Selective disable of Telnet/SSH
  • Target server requirements:
    • Supports multiple operating systems: Windows® 10/Vista/7, Unix, Linux, or MAC OS X® 10
    • Keyboard/mouse: 1 USB and 1 mouse
    • Video interface: HD15 VGA video output (up to 1600x1200 @ 60Hz)
  • Client system requirements:
    • Internet explorer® 6.0+, Netscape 5.0+, Firefox® 3.0+, and Safari® 2.0+
    • PIII processor equivalent or better (recommended)
    • Google chrome 107+
    • Telnet/SSH client for Command Line (CLI) access
  • Interfaces:
    • Network: 10/100/1000Base-T Ethernet port with activity indicators (RJ45)
    • Serial: RS-232, up to 115,200bps for serial device pass-through, unit configuration, or PCU controller
    • USB
    • Local KVM connector
    • Computer input connector
  • 5VDC at 2A maximum power input
  • 4W to 8W heat dissipation range
  • 0°C to +45°C operating temperature range

Videos

Application Examples

Lantronix SpiderDuo KVM Solutions
