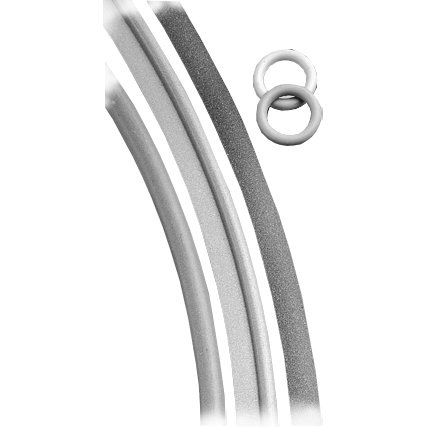

Laird Technologies Electroseal™ Conductive Elastomer Extrusions

Laird Technologies Electroseal™ Conductive Elastomer Extrusions provide environmental sealing and excellent mechanical and electromagnetic shielding properties. The shielding system consists of a conductive gasket sandwiched between a metal housing and lid. The primary function of these gaskets is to provide sufficient electrical conductivity across the enclosure/gasket/lid junction to meet grounding and EMI shielding requirements. The conductive elastomer extrusions from Laird Technologies are ideal for applications that demand both environmental sealing and EMI shielding and can be used in a wide range of operating temperatures. The compounds can be supplied in molded or extruded shapes, sheet stock, custom extruded, or die-cut shapes to meet a wide variety of military and commercial applications.

Features

Meets military and commercial standards
Provides EMI and environmental shielding
Provides good mechanical sealing against air and dust
Available in a wide variety of conductive filler materials

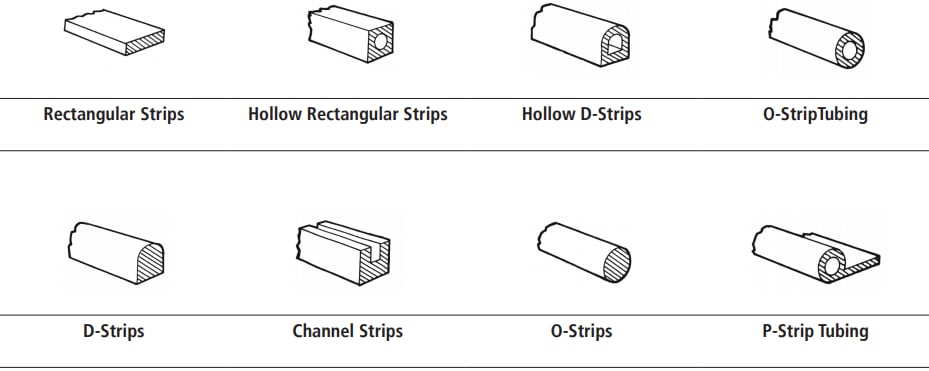

Extruded shapes ideal for extremely narrow mounting surfaces

Shielding effectiveness up to 120dB at 10GHz
Available in custom die-cut and molding forms
Wide variety of material compounds for galvanic compatibility to mounting surfaces
High corrosion-resistant compounds available
