GIGAIPC SMD CIBPU-SI Docking Board
GIGAIPC SMD CIBPU-SI Docking Board connects using a PCI. The SMD Docking Board has an operating temperature of 0°C to 60°C. The CIBPU-SI Docking Board supports the SDM-1135G7L, SDM-1115G4L, SDM-7300L, SDM-7100L, SDM-4000L, SDM-3350L-QV, and SDM-3350L-HW.
Features
- SDM Docking board
- SDM interface PCI connection
Specifications
- 190mm (W) x 62mm (D) Board dimensions
- Support Models
- SDM-1135G7L
- SDM-1115G4L
- SDM-7300L
- SDM-7100L
- SDM-4000L
- SDM-3350L-QV
- SDM-3350L-HW
- Expansion Slots
- 1x PCIe x8 slot for SDM-L module
- 1x Full-size mini PCIe (PCIe only)
- I/O
- 1x USB 3.2 Gen1
- 1x Display Port
- 1xHDMI
- 1x UART
- 1x DC-Jack
- 1x 2x2 Power connector
- Operating temperature 0°C to 60°C

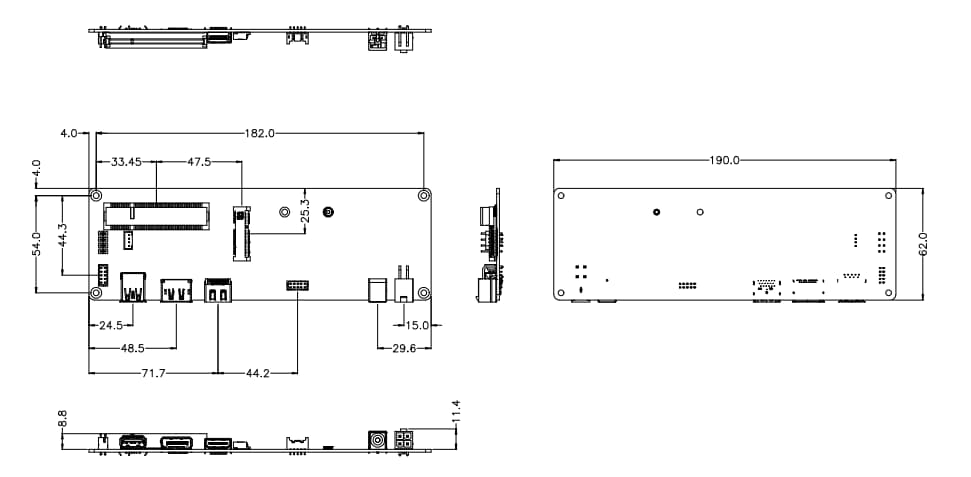

Dimensions mm
Overview
