Electroswitch TS IP67 Sealed Thumb Switch

Electroswitch TS IP67 Sealed Thumb Switches feature a robust design and compact size. The TS series offers contact ratings of 6A at 125VAC, 3A at 250VAC, and an operating temperature range of -30ºC to +85ºC. These switches from Electroswitch are ideal for construction and agriculture equipment applications.

Specifications

  • Contact Ratings 6A at 125VAC, 3A at 250VAC
  • Life Under Load — 60,000 make-and-break cycles — resistive load only
  • Mechanical Life— 100,000+ cycles
  • Initial Contact Resistance — 10mΩ maximum 3VDC, 100ma
  • 1000MΩ, min. insulation resistance
  • 1000Vrms dielectric strength at sea level
  • -30ºC to +85ºC operating temperature range

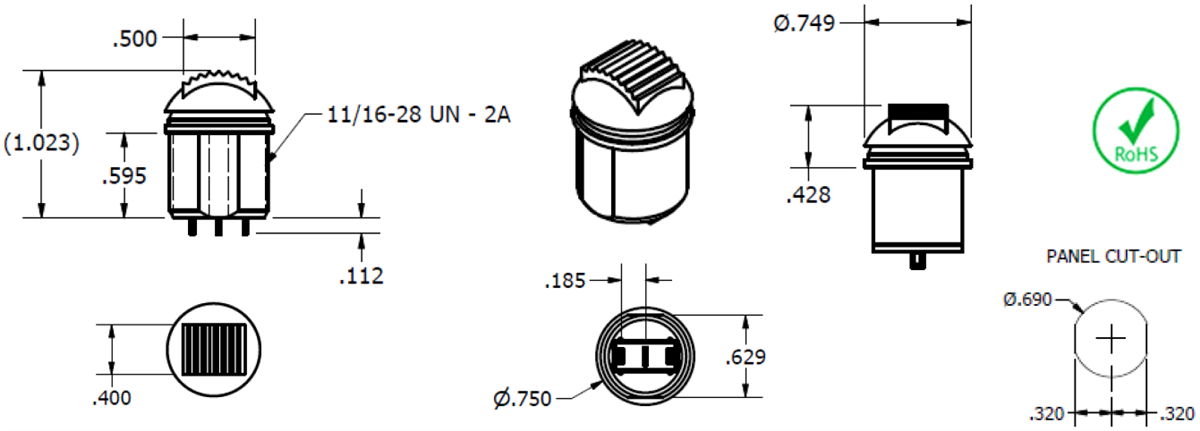

Dimensions

Electroswitch TS IP67 Sealed Thumb Switch
