Delta Electronics / Fans Delta Electronics Ingress Protection Rated Fans
Delta Electronics Ingress Protection Fans feature built-in resistance to environmental conditions such as dust, water and foreign objects that can disable and damage fans and thermal cooling equipment. Delta Electronics Ingress Protection (IP) fans provide IP55 and higher protection as an industry standard, offering protection against the intrusion of solid objects such as hands and fingers, as well as dust or dirt exposure, accidental contact, and water in the form of salt fog, moisture or precipitation.
Features
- IP55 or higher protection
Tested against harsh environments:
- Rain and flooding
- Salt fog and moisture
- Severe dust and dirt exposure

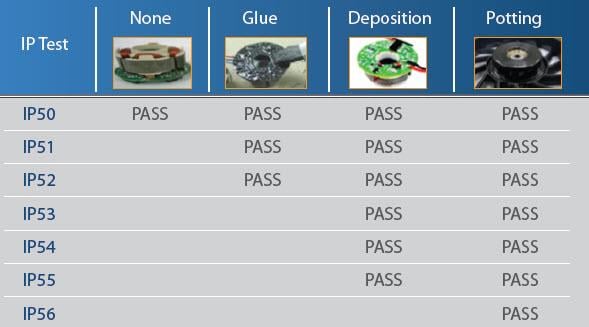

Protection from Harsh Environments
Related Products
Delta Electronics IP68 DC Fans
Designed for durable protection in outdoor application's and harsh industrial areas.
View Results ( 31 ) Page
| 부품 번호 | 데이터시트 | 작동 공급 전압 | 기류 | 노이즈 | 속도 | 전력 정격 | 높이 | 너비 |
|---|---|---|---|---|---|---|---|---|
| AFB0412HHA-TA5F |  |
12 VDC | 8.15 CFM (0.23 m3/min) | 31.5 dBA | 7000 RPM | 600 mW | 40 mm | 40 mm |
| PFB0812DHE-T500 | |
12 VDC | 133 CFM (3.8 m3/min) | 65 dBA | 9000 RPM | 33 W | 80 mm | 80 mm |
| PFB0924DHE-T500 | |
24 VDC | 175 CFM (5 m3/min) | 66.5 dBA | 8000 RPM | 34.8 W | 92 mm | 92 mm |
| AFB1224HHE-T500 | |
24 VDC | 131 CFM (3.7 m3/min) | 47 dBA | 3500 RPM | 6.48 W | 120 mm | 120 mm |
| AFB0412SHB-T500 | |
12 VDC | 14.8 CFM (0.42 m3/min) | 41.5 dBA | 11000 RPM | 3 W | 40 mm | 40 mm |
| AFB0624EH-TA50 | |
24 VDC | 38.4 CFM (1.09 m3/min) | 46.5 dBA | 6800 RPM | 5.76 W | 60 mm | 60 mm |
| AFB1212VH-T500 | |
12 VDC | 104 CFM (2.9 m3/min) | 44.5 dBA | 3100 RPM | 4.8 W | 120 mm | 120 mm |
| EFB0424VHD-TZW2 | |
24 VDC | 10.1 CFM (0.29 m3/min) | 32.5 dBA | 9000 RPM | 2.16 W | 40 mm | 20 mm |
| FFB0412UHN-TYYK | |
12 VDC | 27.1 CFM (0.77 m3/min) | 58.5 dBA | 18500 RPM | 7.8 W | 40 mm | 40 mm |
| AFB0524VHD-TZW5 | |
24 VDC | 20.3 CFM (0.57 m3/min) | 40.5 dBA | 7000 RPM | 2.4 W | 50 mm | 50 mm |
