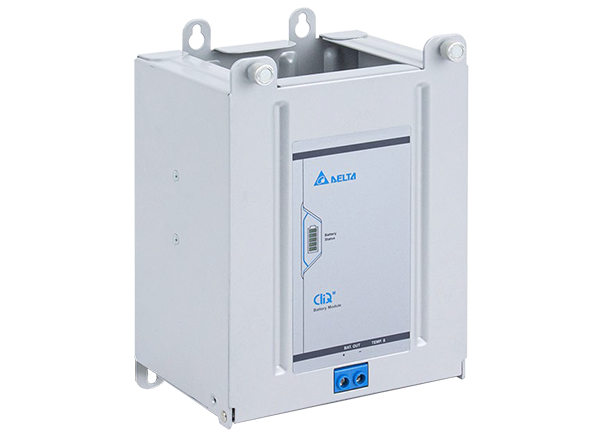

Delta Electronics CliQ M Battery Modules
Delta Electronics CliQ M Battery Modules are designed to support 2x 12V, 7.2AH lead-acid batteries in series for 24V systems. The Delta CliQ M Battery Modules include a built-in battery voltage LED indicator to easily monitor the status while in operation. When the battery modules are used together with the CliQ M DC-UPS modules, users can also monitor the battery temperature to prevent the lead-acid battery from overcharging and overheating to extend battery life.
Features
- Anti-corrosion powder-coated chassis
- Suitable for 7.2AH lead-acid battery
- 2x 12V batteries in series
- Built-in battery voltage LED indicator
- Built-in battery overtemperature protection (needs to be used with the CliQ M DC-UPS modules)
Applications
- Industrial automation
- Factory automation
- Machine automation
Specifications
- 24VDC typical nominal voltage
- 2.1A maximum charging current
- 40A maximum discharging current
- 7.2A output current
Videos
Related Products
Delta Electronics CliQ M Series Set for Uninterruptible Systems
Power supplies and modules that match together to reduce production downtime during power failures.
Delta Electronics CliQ M DC-UPS Modules
Features 24V output in 10A, 20A, or 40A output current models with a -30°C to +70°C range.
