Altera MAX® V 개발 키트

시장의 선도적인 CPLD 공급업체가 제공하는 Altera DK-DEV-5M570ZN MAX® V CPLD 개발 키트는 저렴한 저전력 CPLD 설계 장치 개발을 빠르게 시작하기 위한 종합적인 보급형 하드웨어 플랫폼을 제공합니다.

As an entry-level development platform, the MAX V CPLD Development Kit allows users to evaluate the functionality and features of the FPGA to meet design needs. It includes the board, IP solutions, and FPGA software tools. The board is equipped with general-purpose and motor control headers to connect and test peripherals and accessories, facilitating the evaluation of designs.

특징

  • Dual general-purpose I/O (GPIO)
  • User flash memory (UFM)
  • Capacitor sense button
  • User LEDs and push buttons
  • Replaceable oscillator
  • Embedded USB Blaster
  • Off-chip I2C and SPI EEPROM interfaces
  • Speaker header
  • Two DC motor headers
  • Variable output voltage selection
  • 0°C to +45°C operating ambient temperature range

애플리케이션

  • I/O expansion
  • Configuration and initialization control
  • Interface bridging
  • Capacitive sensor switch-based applications
  • Industrial control
  • Motor control
  • Analog interface control
  • Power management control

고객 사용 사례

  • Develop designs for the 5M570Z CPLD tailored to target applications
  • Interface to external functions or devices via four connectors
  • Create solutions using capacitor sense push button switches and other push button switches, ideal for applications requiring reliability, durability, comfort, and design
  • Configure the FPGA through a USB Blaster 2 cable
  • Reuse the kit’s board layout and schematic to accelerate designs
  • Start immediately with the free version of Quartus® Prime Lite Edition Software, an intuitive, high-performance design tool that supports design entry, synthesis, optimization, verification, and simulation

키트 구성품

  • MAX V CPLD 개발 보드
  • 보드에 전력을 공급하기 위한 USB 케이블
  • CPLD 구성을 위한 임베디드 USB-BlasterTM 회로
  • 다양한 사용자 LED, 푸시 버튼, 커패시터 감지 버튼
  • 표준 PC 스피커 헤더
  • DC(직류) 모터 헤더 2개
  • 도터카드와 결합하기 위한 범용 I/O 커넥터

블록 선도

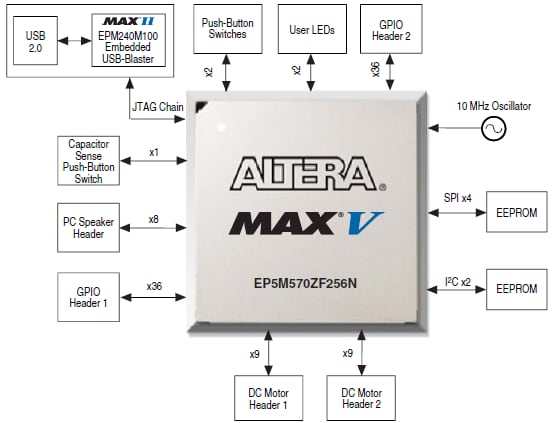

블록 선도 - Altera MAX® V 개발 키트

개요

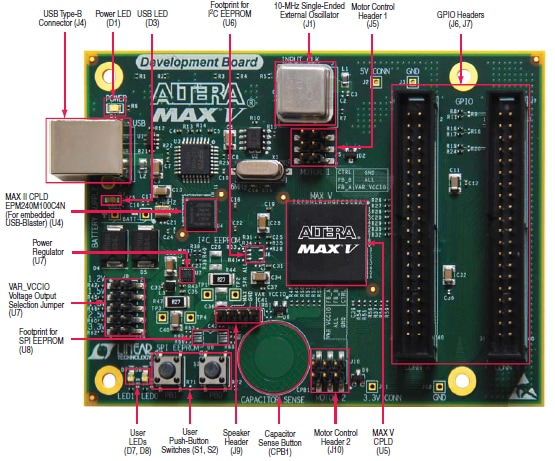

위치 회로 - Altera MAX® V 개발 키트
